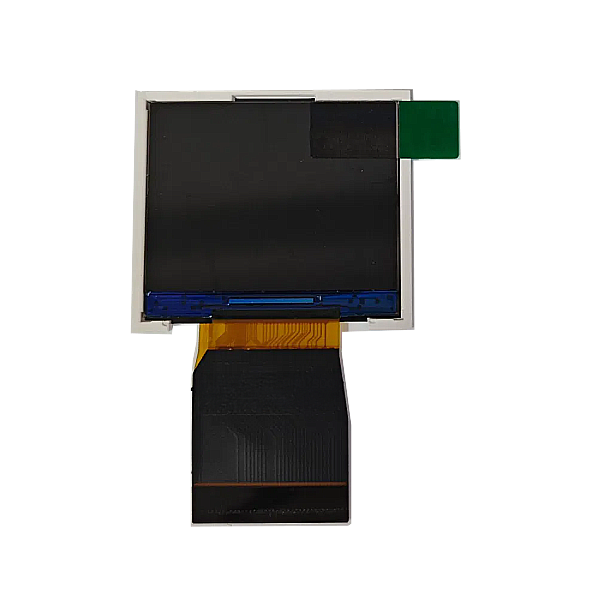

RT15WH019E
Size : 1.5inch / LCD Type : Transmissive TFT,262K color / Number of Dots : 480(RGB)X 240 / Viewing Direction : 6:00 / LCM Outline Dimension : 37.10 (W) X32.70(H) X1.50(T) mm / Active area : 29.76(W) X22.32 (H) mm / Operating temperature : -20ºC~70ºC / Driving IC : OTA5182A / Interface : RGB

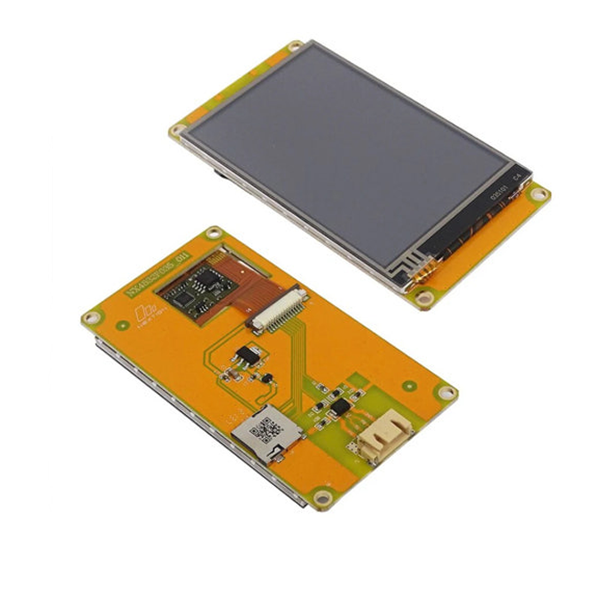

Nextion NX3224F024
Size: 2.4 inch / LCD Type : Transmissive TFT, 65K color (RGB 16bit) / Number of Dots : 320(RGB) × 240 / Viewing Direction : 6:00 (Bottom view) / LCM Outline Dimension : 74.4(W) × 42.9(H) × 5.8(T) mm / Active Area : 48.96(W) × 36.72(H) mm / Operating Temperature : –20ºC ~ 70ºC / Driving IC : 내부 STM32GO (Cortex‑M0+ MCU)

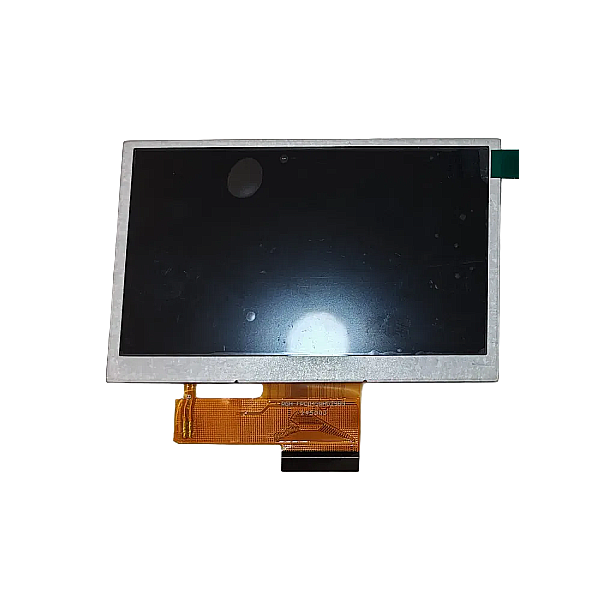

RT43WH029B
Size: 4.3 inch / Aspect Ratio 5:4 / LCD Type : Transmissive TFT, LED Backlight, Touch 지원 / Number of Dots : 480(RGB) × 272 / Viewing Direction : All view (광시야각) / LCM Outline Dimension : 105.40(H) × 67.10(V) × 2.90(T) mm / Active Area : 95.04(H) × 53.86(V) mm / Driving IC : ST7282A / Interface : RGB 24bit (8bit per color) / Response Time : 35 ms
RT15WH019E
Size : 1.5inch / LCD Type : Transmissive TFT,262K color / Number of Dots : 480(RGB)X 240 / Viewing Direction : 6:00 / LCM Outline Dimension : 37.10 (W) X32.70(H) X1.50(T) mm / Active area : 29.76(W) X22.32 (H) mm / Operating temperature : -20ºC~70ºC / Driving IC : OTA5182A / Interface : RGB
Nextion NX3224F024
Size: 2.4 inch / LCD Type : Transmissive TFT, 65K color (RGB 16bit) / Number of Dots : 320(RGB) × 240 / Viewing Direction : 6:00 (Bottom view) / LCM Outline Dimension : 74.4(W) × 42.9(H) × 5.8(T) mm / Active Area : 48.96(W) × 36.72(H) mm / Operating Temperature : –20ºC ~ 70ºC / Driving IC : 내부 STM32GO (Cortex‑M0+ MCU)
RT43WH029B
Size: 4.3 inch / Aspect Ratio 5:4 / LCD Type : Transmissive TFT, LED Backlight, Touch 지원 / Number of Dots : 480(RGB) × 272 / Viewing Direction : All view (광시야각) / LCM Outline Dimension : 105.40(H) × 67.10(V) × 2.90(T) mm / Active Area : 95.04(H) × 53.86(V) mm / Driving IC : ST7282A / Interface : RGB 24bit (8bit per color) / Response Time : 35 ms
